Our modern plant, with state-of-the-art equipment integrating the latest technologies backed by experts with technical mastery, has enabled us to grow exponentially from refurbishment in 2022, serving myriad industry verticals worldwide.
| Description | Units | Total Units |
| Land | 3.88 Acres | |
| Buildings | ||
| Main | 55000 Sq.Ft | |
| Auxillary | 22000 Sq.Ft | |
| Office | 7200 Sq.Ft | |
| Connected Power | 2080 KVA | |
| Installed Capacity | 1000 Tons | |
| ARPA 300 x 2 Pairs | 400 Tons | |
| ARPA 900 - 1 Pair | 300 Tons | |
| No-Bake (Furon Hand Moulding & Fast loop) | 250 Tons | |
| Pollution Control Board Consent | 650 Tons | |
| Present Production Capacity of Saleable Castings | 650 Tons | |
| Liquid Metal Output/Day | 40 Tons | 1000 Tons |

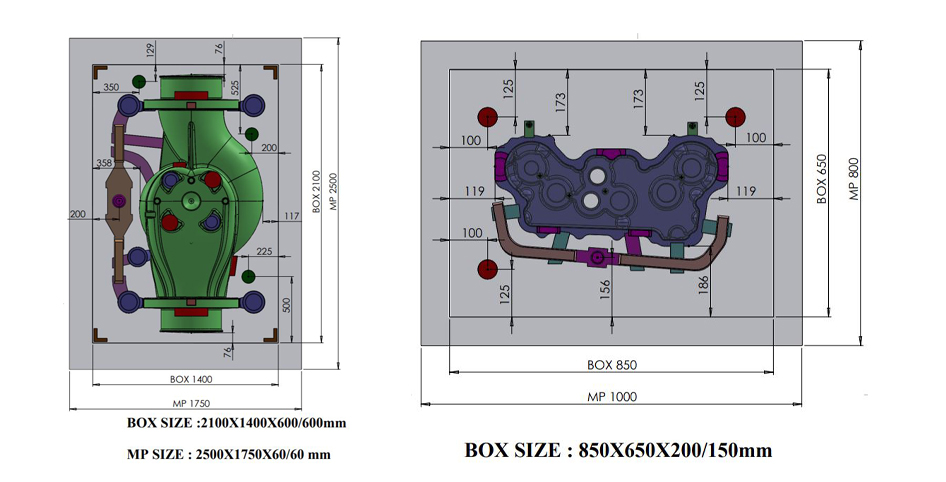

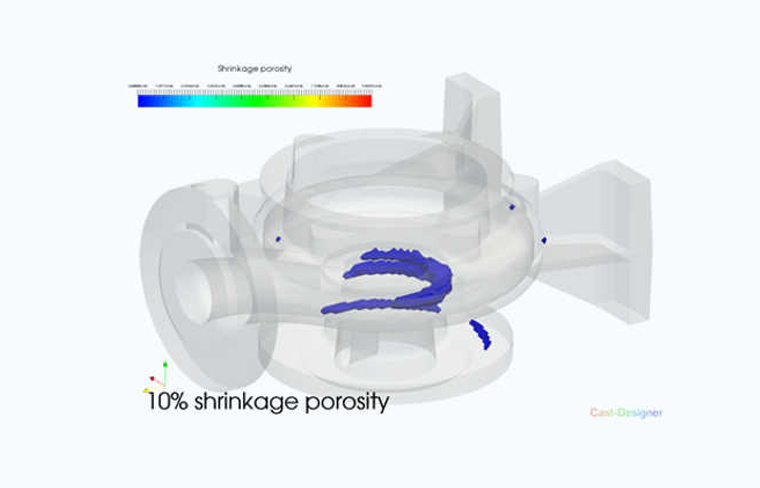

Our design experts adopt a distinct approach to product design with advanced 2D and 3D simulation models using CastPro to reduce development lead time and deliver patterns for producing superior-quality castings.
We produce cost-effective and high-performance castings machined and subassemblies adhering to design specifications. Our contemporary set-up has the following facilities:
ARPA 300 moulding machine 400 x 520 x 200 mm box size
Casting weight: 0.5 Kg to 25 Kg
ARPA 300 - 1 moulding machine 520 x 520 x 200 mm box size
Casting weight: 0.5 Kg to 30 Kg
ARPA 900 moulding machine 850 x 650 x 250 mm box size
Casting weight: 40 Kg to 100 Kg
Omega no-bake fast loop moulding machine 1000 x 1000 x 500mm box size
Casting weight: 100Kgs - 250Kgs
Furan Hand or floor moulding
Casting weight: up to 2.2 Tons liquid metal / Custom-built to meet specification

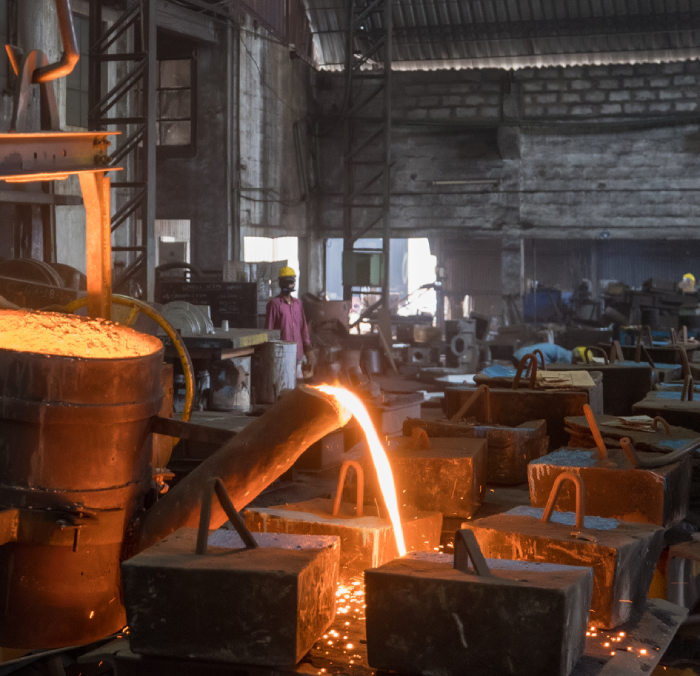

Medium frequency - 750KW Inductotherm Dual Track Melting Furnace with 1 Ton capacity crucibles - 2 nos
Medium frequency - 1000KW Inductotherm Melting Furnace with 1 Ton capacity crucibles - 2 nos
Our advanced lab enables us to analyze incoming raw materials; and ensure process control by evaluating the chemical, metallurgical and mechanical properties of manufactured components with every batch. We conduct visual and dimensional inspections at the pre-fettling and pre-dispatch stages.
Spectrometer - Metal power mass - India
Range: 23 Elements
Fie electronic universal testing machine - Model UTE-40, Blue Star Ltd
Range: 400 Kn capacity
Brinnell hardness machine - FIE
Range: 3000 kg
Poldi & shear pin hardness tester
Microscope - FMA2
Range: 10 - 100 magnificient
Permeability Meter - Versatile Equipments
Range: 0.1 - 10 gms/sqm and 01 gms / sq.cm

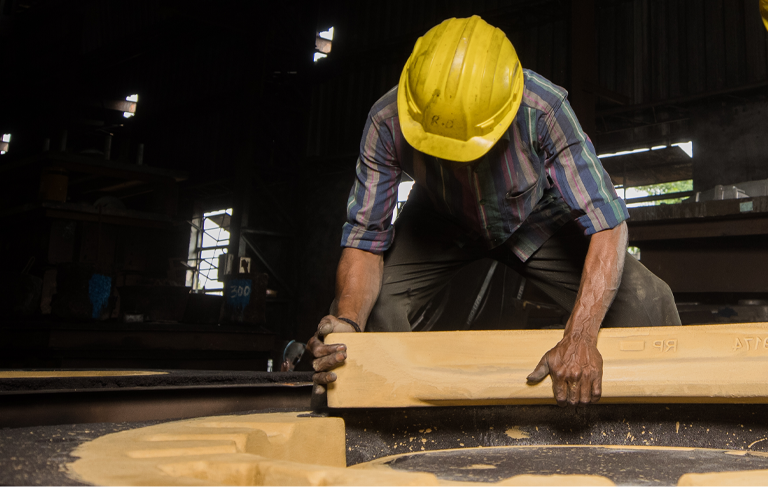

Sarvamangala Automatic Mixer & Weighing Control System Capacity: 500 kgs/ 3.5 mins
500 kg hook type shot blasting machine - 2 nos

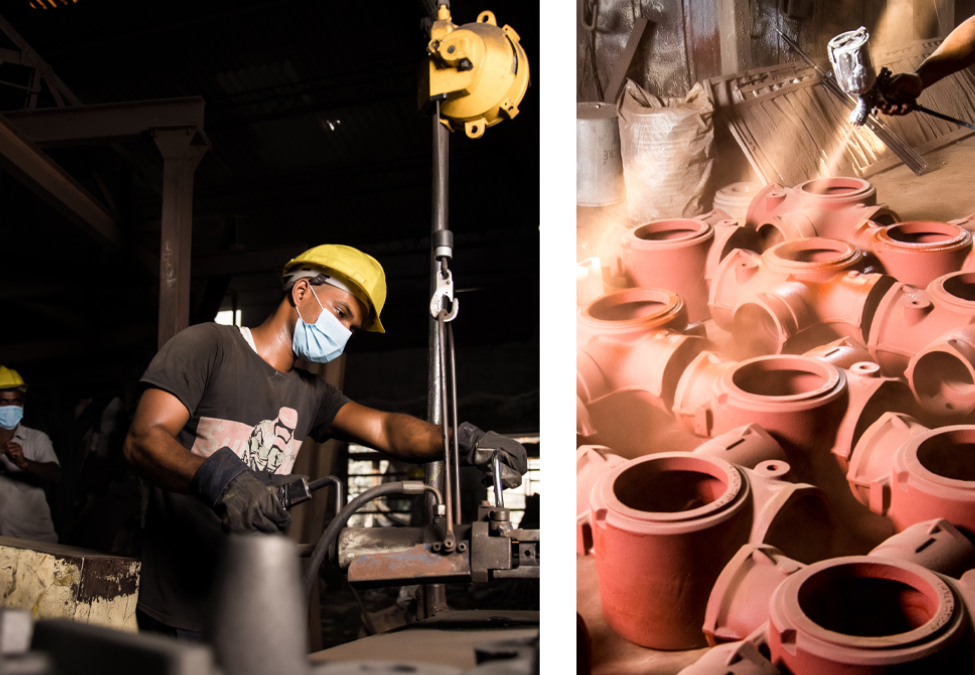

Our paint booth is supported with facilities for spray and dip painting.

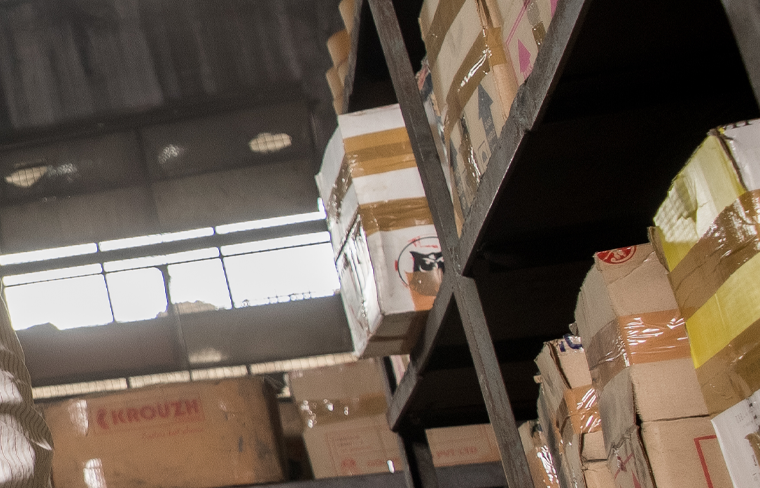

All components manufactured at our high-end facility are meticulously packed, adhering to packing standards for both domestic and international shipments.
Our IT infrastructure is well-developed with cutting-edge software supported by a strong team of highly competent professionals who offer unique solutions to tackle the IT challenges of the company.
We provide customized and sustainable solutions catering to a myriad of industry sectors.
Get in touch with us to discuss new projects.
